I was thinking about the gateways and wondering what they look like. Would it be one small dish nobody notices? A really big dish like a radio telescope? A row of dishes all aimed the same way?...
Forum Discussion
I always assumed the spot beams were combined in space into a single bidirectional path to the ground station. Kind of like a large addressable router for up to 8 or 9 different beams. If that's true, the ground station would only need one large dish (yes, larger diameter usually means more gain) per active satellite that it services, depending upon how redundant the systems are. I say 'assumed' but always based this on the number of hops you see in a traceroute before you got to the gateway provider.
Having said all this, I just checked: Where there used to be three direcway hops, now there are only two for my gateway, which used to service both Exchostar 17 and 19 (J1 and J2). Not sure that matters for your question. Just thought it to be an interesting change. Curious how this factors into what used to be a pretty secure double-NAT architecture.
I see in that old gov application for licenses that there are several frequency bands for both upload and download -- perhaps they have so many dishes not just for redundancy, but to split based on frequency band as well as upload/download? I suspect this gateway shown here is serving not just J2, but also some older satellites -- anyway, I can see the aim is different on the dishes, but many dishes of different sizes appear to be aimed at the same thing. I found some other gateways that had fewer dishes.
Having redundancy is good -- getting a little water in a cable without redundancy would cause havoc for a lot of folks on several beams if everything went through a single dish, although I think I saw something about there being a backup gateway setup for each beam should a disaster take out a gateway.
Do you remember when the last time you saw three hops? Maybe it is connected with a gateway upgrade they did at some point? The gateway upgrades earlier this year were fairly noticeable, so I was wondering if maybe what you saw was related to that? I had not thought of logging a traceroute result every week or so to watch for things changing like that.
By the way, what number for your IPGW do you see? I was wondering if other customers see numbers outside of the ranges that I have been seeing since earlier this year -- of course you are a different beam and gateway, but I was curious if the number ranges differ by customer/plan etc.
It's quite possible the 2 vs. 3 hop thing took place during the upgrade. Can't remember the last time I did a traceroute.
As far as the numbers go, I used to only see 1200 thru about 1205 or so. Since the upgrade I've been seeing 13xx and 14xx. I don't see many 13xx, but have noticed up to around 1412. I assume the code is abcc, but what a, b, or c mean could be anything. At one time that code used to be just three digits that we used to assume was somehow related to the outroute path.
The ranges on your IPGW seem the same as mine then 1201-1204, 1305-1308, 1409-1412
I was hoping to hear from someone that sees different ranges -- I thought maybe they stuck in several banks of 12 IPGW, but gave each customer access to only 12, but so far nobody has said they have seen any number other than the above. I saw a picture online in a HughesNet brochure of some sort that showed rack servers with a pair of network cards(?) apiece as hardware that might represent what is behind an IPGW number.
I have been looking for the J2 gateways to get images of what they look like. Some are obvious and have a huge number of dishes, others might just be a single big dish sitting in some parking lot. The ones with a single smaller dish are the hardest to find -- and I am not sure they are actually a gateway.
I think I was mistaken about size -- the gateway above (CHY) seems to have as 13.2m(?) dish plus that big weird thing north of the the dishes whatever that is. Whatever that is, GIL has two of them plus a bunch of the 13.1 or 13.2m dishes. The NLV gateway also has a huge number of dish antenna all over and it is handily labeled by Google as "Hughes Network Systems" so I think it is safe to say that gateway is found.
Anybody find other sites? I am tired out searching for OMA -- I could not find a dish bigger than 4m, and it was a single dish that I suspect belongs to somebody else.
Here are the ones I saw with BIG dishes:

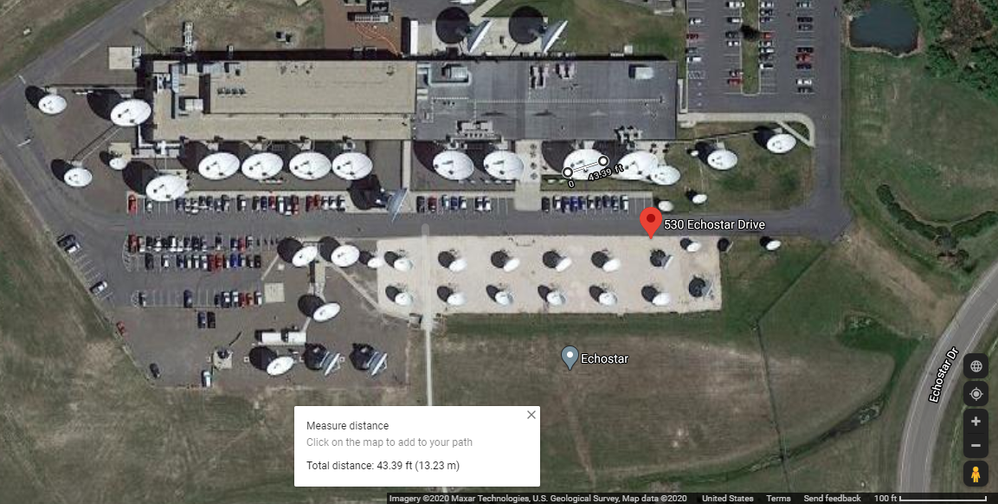

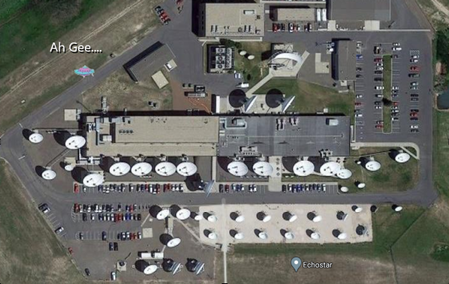

CHY -- sorry, in this pic I cut off the big weird thing at the top:

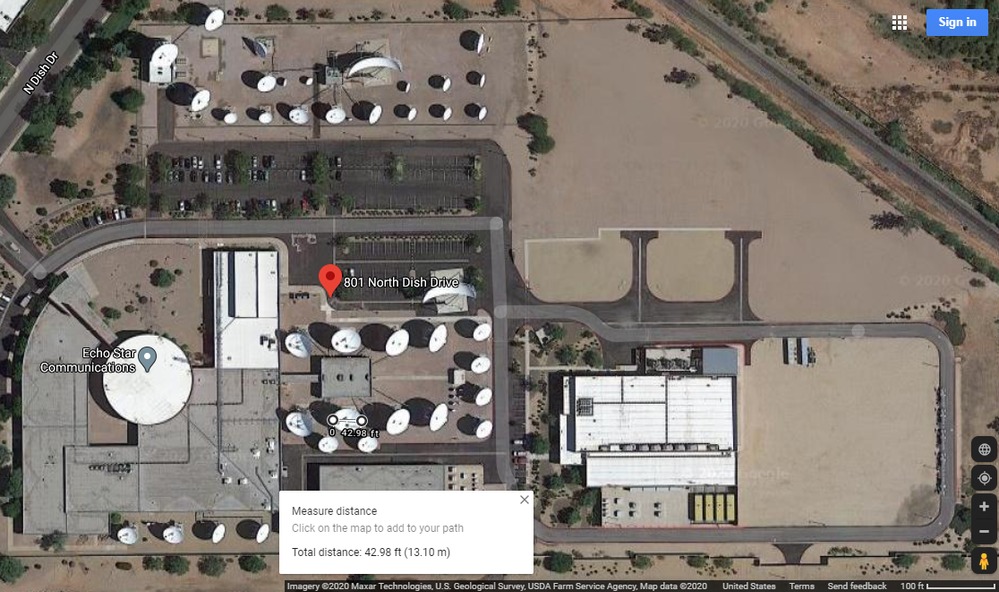

GIL -- scads of dish antenna willy nilly with two of those weird things -- anybody know what they are?

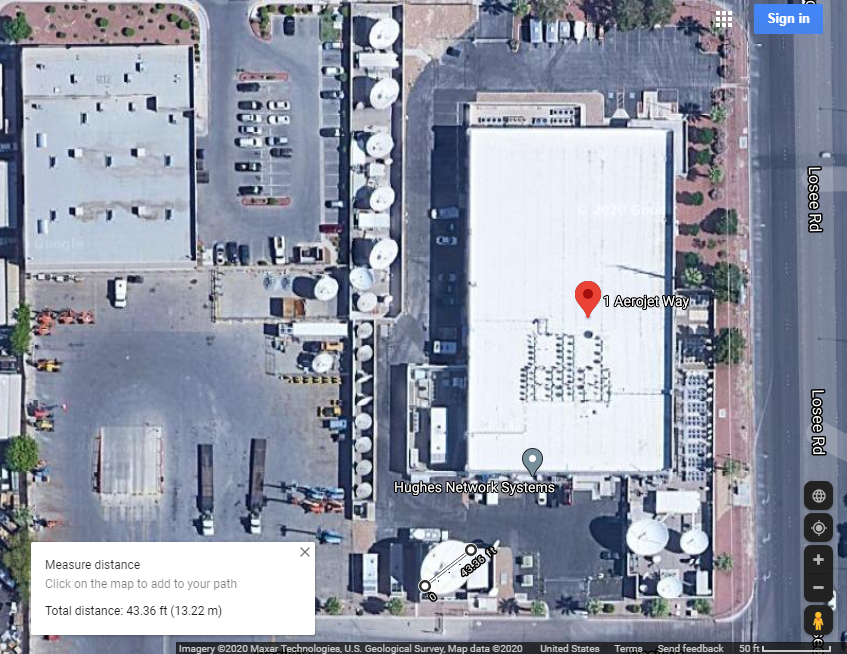

NLV is identified on Google maps -- that makes it easy!
Let me know if you want to see some of the pics that show only a single lonely/small dish -- not sure they are really gateways.
